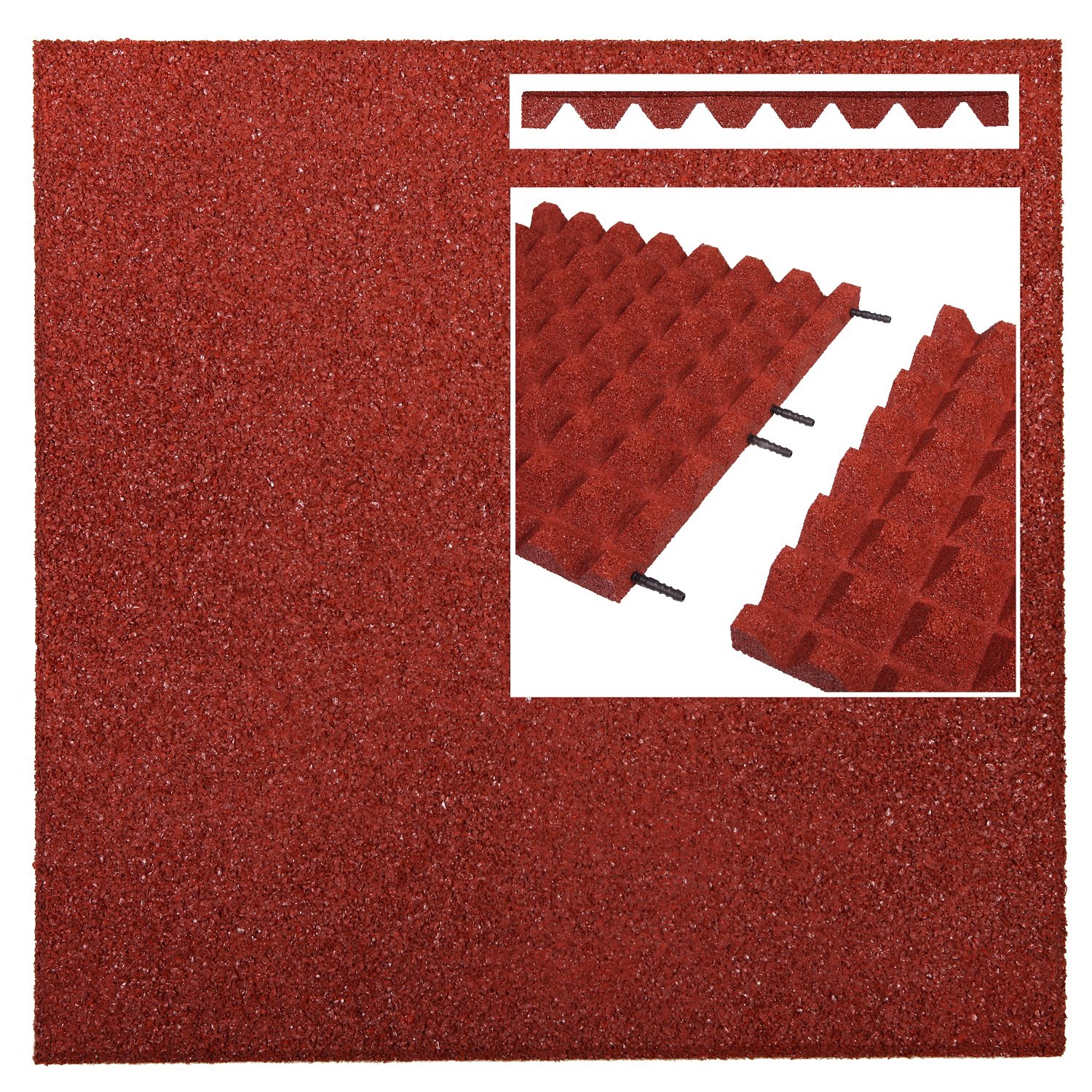

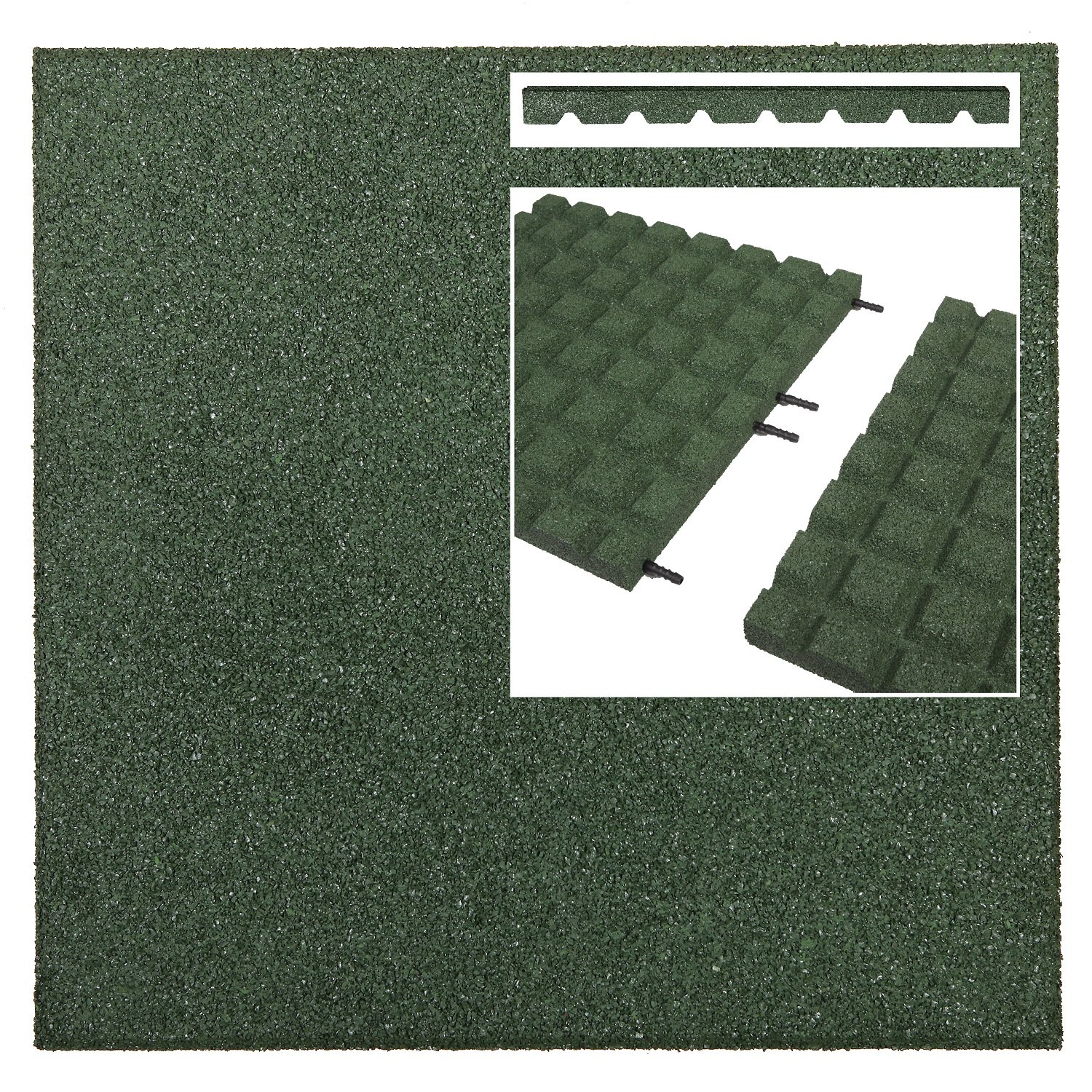

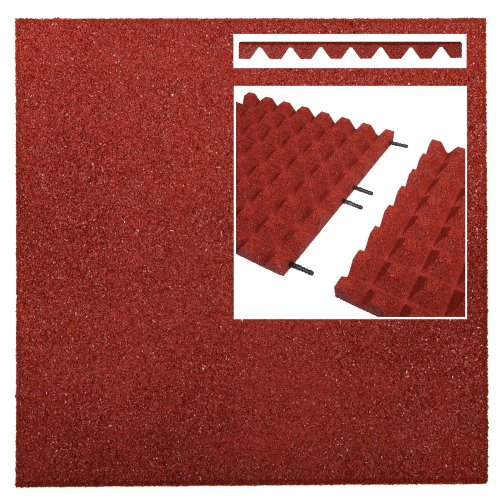

The tile has a so-called raster on the underside to provide surface resilience, rapid water drainage and ensures a more elastic feeling when walking and rebounding. In the case of sports games, children running, presence of game elements and other activities, the cover absorbs the impact on the surface and silences the acoustic noise in lower floors.
Material: SBR rubber or EPDM rubber (layer of black recycled EPDM + 5 mm top layer of dyed primary EPDM)
Dimensions: 500 x 500 mm or 1000 x 1000 mm
Density: 750 kg/m3

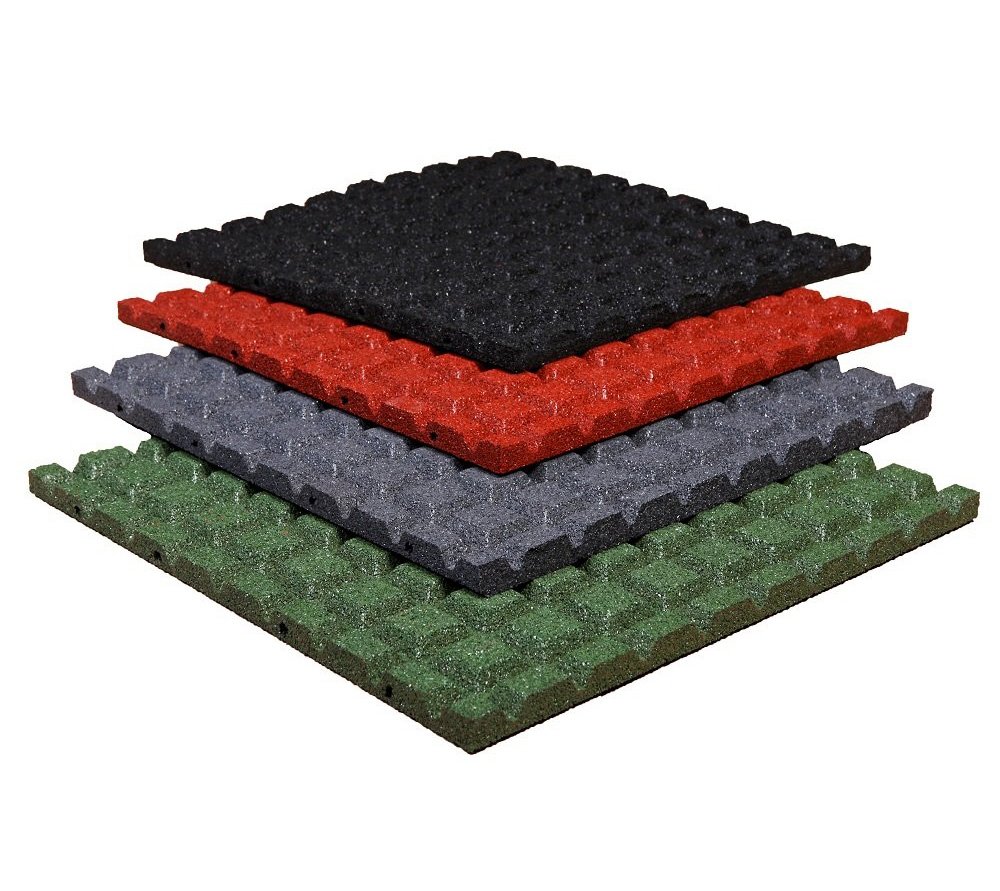

Produced in several variants and heights according the required critical height of the fall HIC.
Name | Raster | Thickness (mm) | Weight (kg) | HIC (cm) |
---|---|---|---|---|
Tile with raster | 15 | 25 | 3,85 | 80 |
30 | 4,38 | 103 | ||
40 | 6,8 | 130 | ||
28 | 40 | 5,4 | 147 | |
45 | 6,4 | 150 | ||
50 | 7,4 | 158 |
Upon the customer's request, a 1000 x 1000 mm tile can also be produced. Tile joints are made using a plastic pin. The tile can be installed on a gravel surface (several fractions of vibrated aggregate which drains the water well). It is not necessary to have a concrete or asphalt surface.
Vazová 2143
Uherský Brod, 688 01
Czech Republic
You can call us at +420 737 218 315 or write us a message.
